£1,220.00
VAT Included. Free UK Delivery.
22mm Solid Laminated Board Frame
Self-Hold Spring & Safety Lock Included
Duvet Straps & Slatted Base Included
Colour: White Gloss
Bed Size: 90 x 200cm
Mattress: Wall Bed Only

⏳ Estimated production time: 4–5 weeks

Once ready, our two-person delivery team will contact you to arrange a suitable delivery date.

🔒 Secure Checkout with:
📐 Before you order — check your spacetap to expand ▼

What to measure:

  • Wall width — must be at least as wide as the unit's folded width (see dimensions tab above)
  • Ceiling height — must exceed the unfolded depth listed in specs
  • Floor depth — open bed extends ~200cm outward plus ~28cm clearance from the wall

Wall fixing:

  • Must fix into brick, concrete or solid timber — not plasterboard alone
  • Fixings for your wall type sold at any DIY store (not included)
  • Max mattress thickness listed per product — thicker mattresses prevent folding

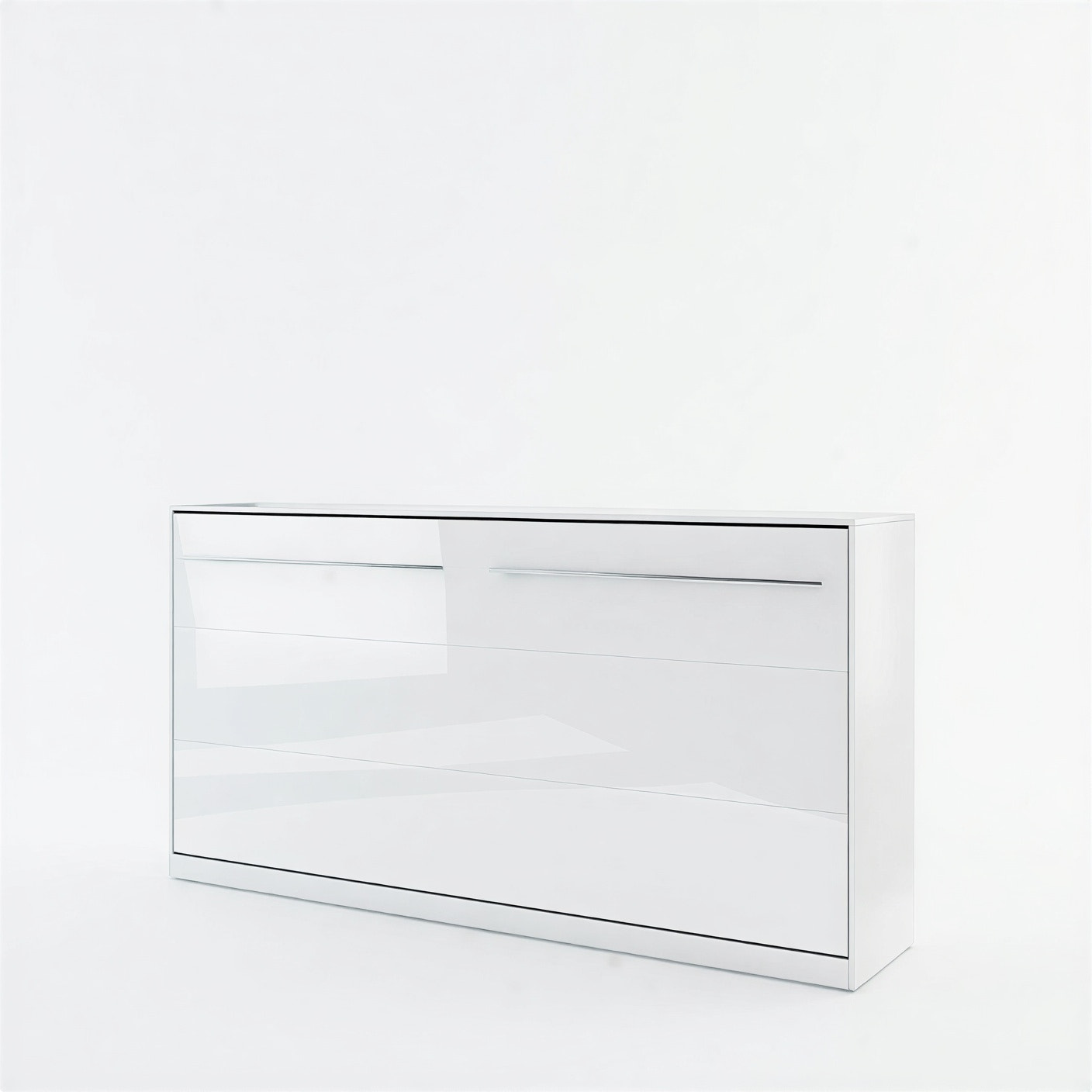

The CP-06 is a single horizontal fold-down wall bed with a large integrated over-bed storage unit, made from solid 22mm laminated engineered wood. Perfect for smaller rooms needing both sleeping and storage space. Features a self-holding spring mechanism, locking system and duvet straps.

Key Features & Dimensions

  • Bed Dimensions (folded): W215cm × H109cm × D46cm
  • Bed Dimensions (unfolded): D127cm
  • Over-Bed Unit Dimensions: W215cm × H108cm × D46cm
  • Frame Material: Engineered Wood (solid 22mm laminated board)
  • Mechanism: Spring mechanism with self-holding feature
  • Locking System: Included for extra safety
  • Duvet Holding Straps: Included

Mattress Information

Mattress not included. This bed requires a 90 × 200 cm (EU Single) mattress. Maximum mattress depth: 18 cm — deeper mattresses will prevent proper folding. A compatible foam or bonnell sprung mattress is available separately.

Assembly & Wall Mounting

Wall beds must be fixed directly to a solid structure such as brick, concrete or a solid timber frame. Wall beds must not be fixed to a plasterboard or similar unless there is a solid structure underneath it. Wall fixings for your specific type of wall can be purchased at a local DIY store.

Frequently Asked Questions

Is the mattress included?
You can choose between "Wall Bed Only" or "With Foam Bonnell Mattress" variants.
Does the bed need to be mounted to the wall?
Yes. Wall beds must be anchored to a solid structure such as brick, concrete, or solid timber. Do not mount directly to plasterboard unless reinforced. Fixings are not included—use ones suitable for your wall type.
Is it suitable for everyday use?
Yes, the mechanism is designed for daily opening and closing while providing a comfortable sleeping area.
Who should assemble the bed?
We recommend installation by a professional joiner or a competent person. Secure assembly and correct wall mounting are essential for safe operation.
What mattress do I need?
Mattress size: 90 × 200 cm (EU Single). Max thickness: 18 cm. Recommended mattress weight: ~12 kg. Deeper mattresses will prevent proper folding.
What safety features does this CP Concept wall bed have?
The CP Concept series includes a self-holding feature that stops the bed in any position mid-air for safety, a locking system to prevent accidental opening when stored, and duvet holding straps so bedding stays in place. The spring mechanism ensures smooth operation.
What is the over-bed unit?
The over-bed unit is a storage cabinet (W215cm x D46cm) mounted above the bed when folded. It provides convenient storage space while maintaining a sleek, integrated appearance that maximizes your room's floor space.
