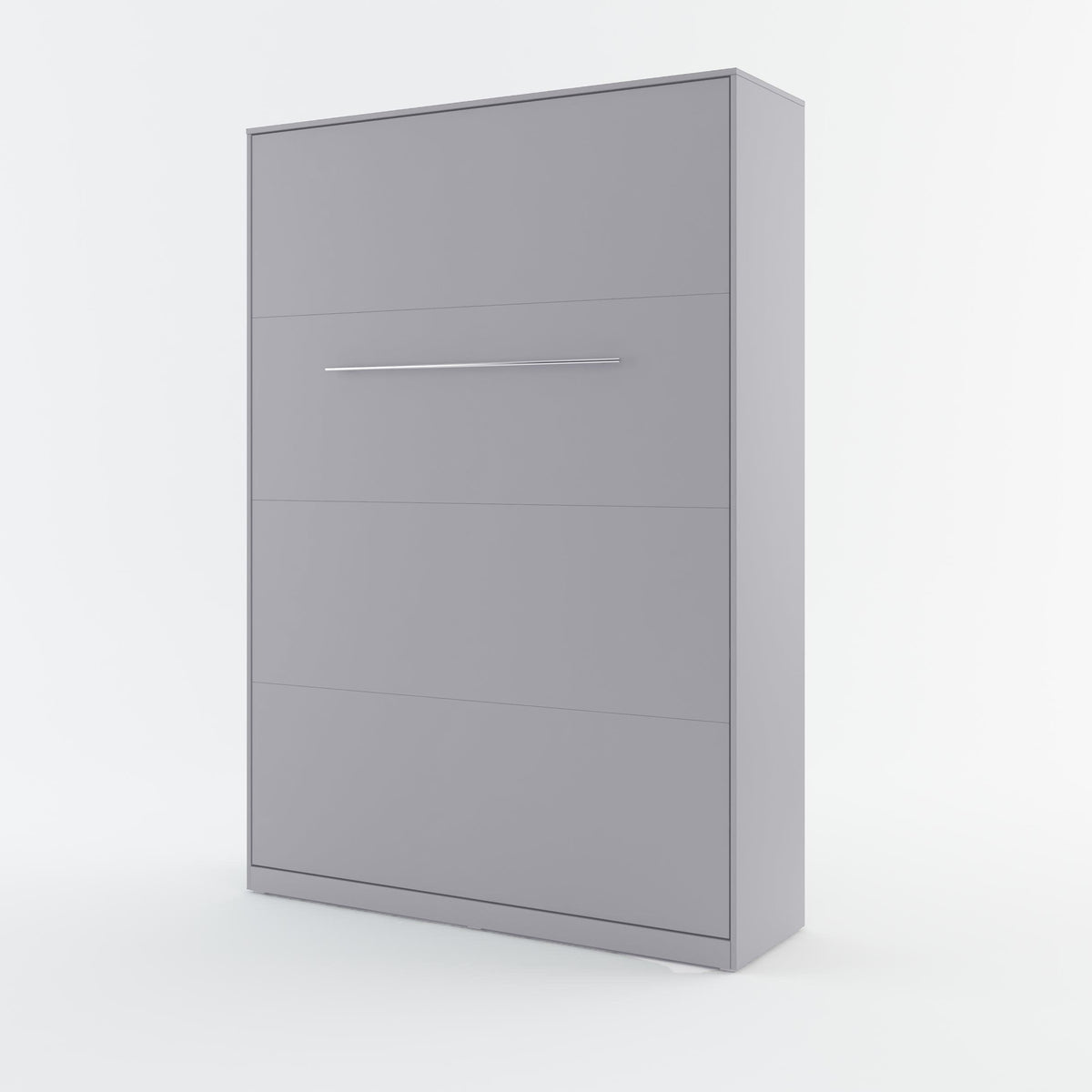

Small double vertical wall bed in Grey Matt, closed

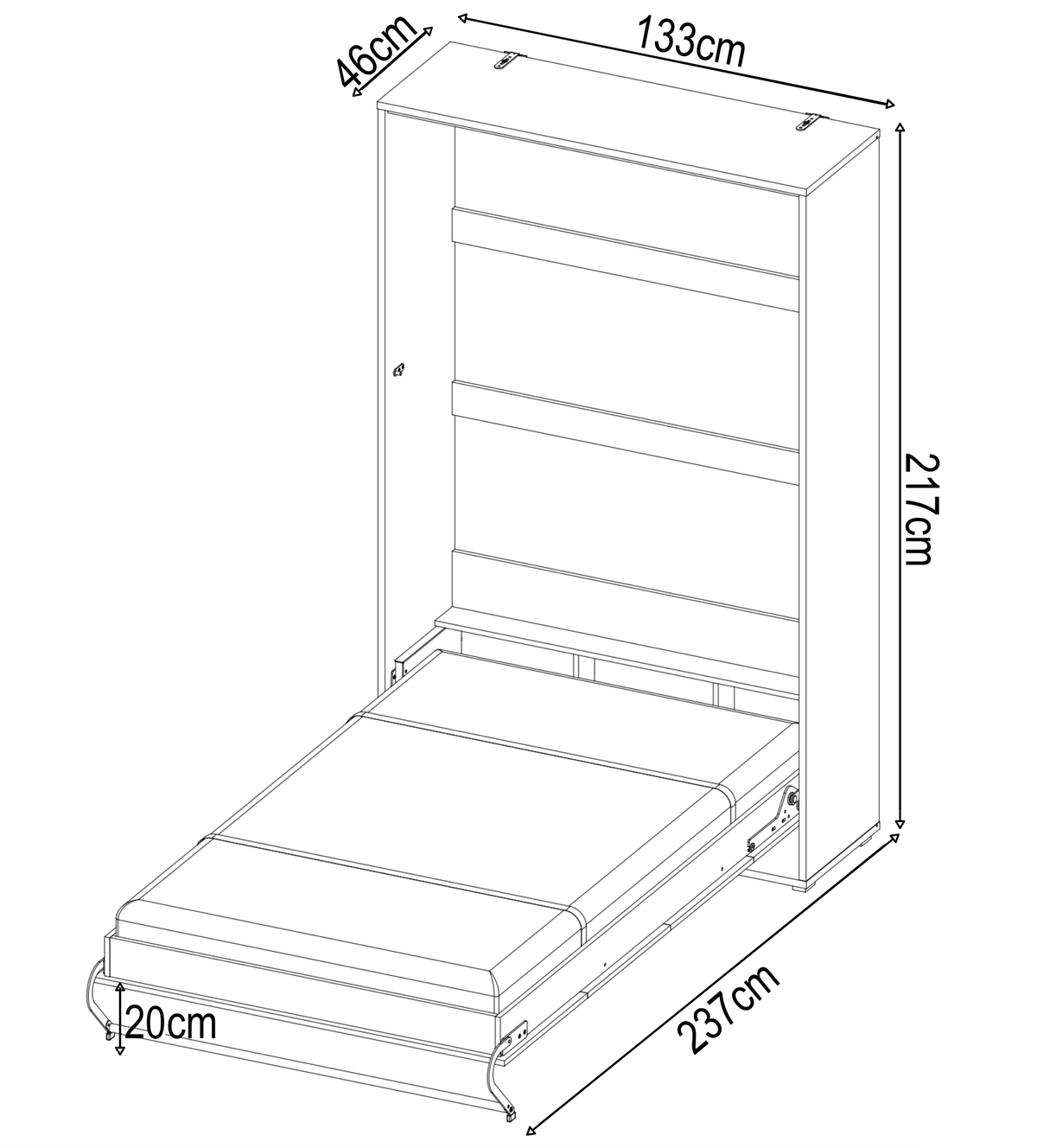

Small double vertical wall bed dimensions: 133cm wide, 217cm high, 46cm deep, 237cm open

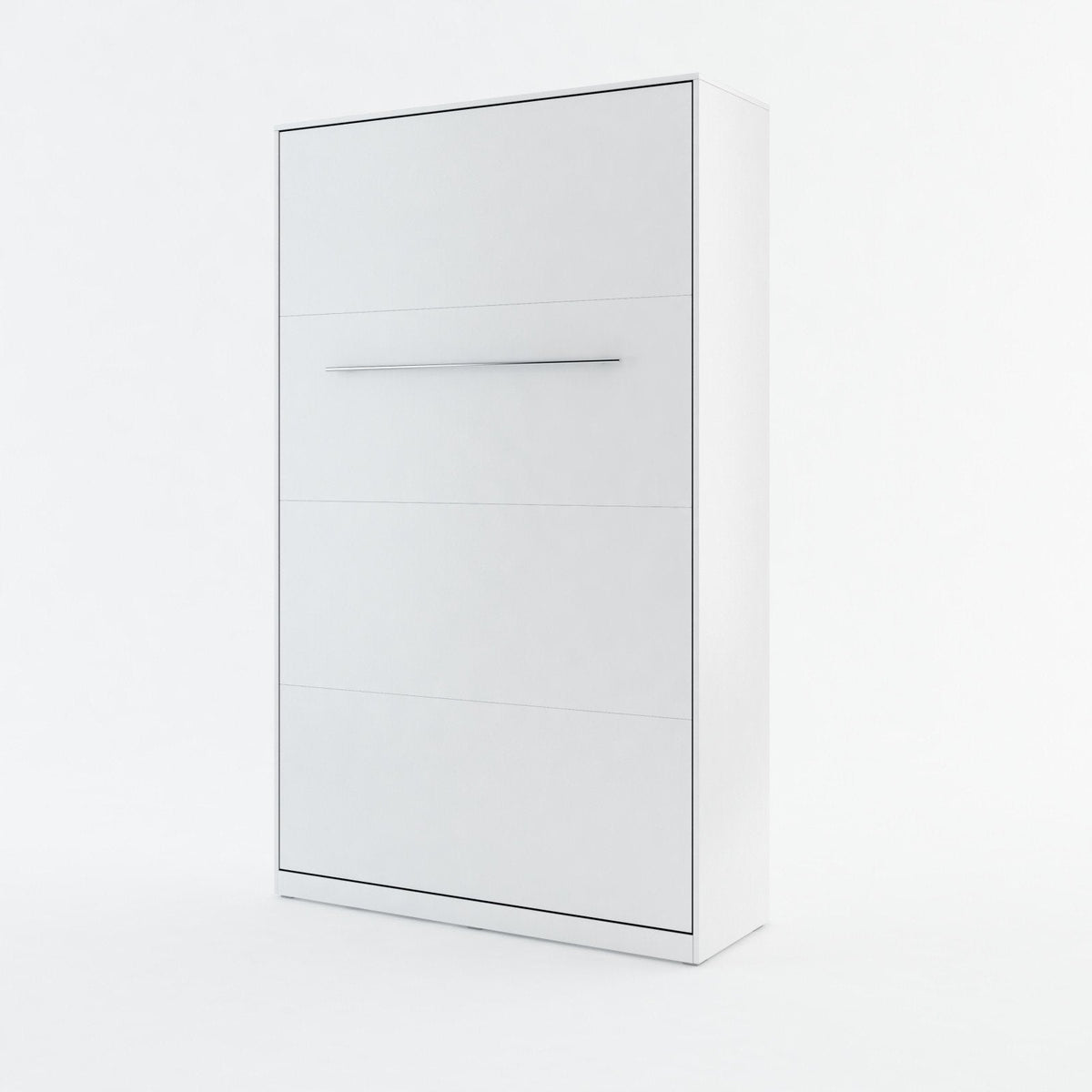

Small double vertical wall bed in White Matt, closed

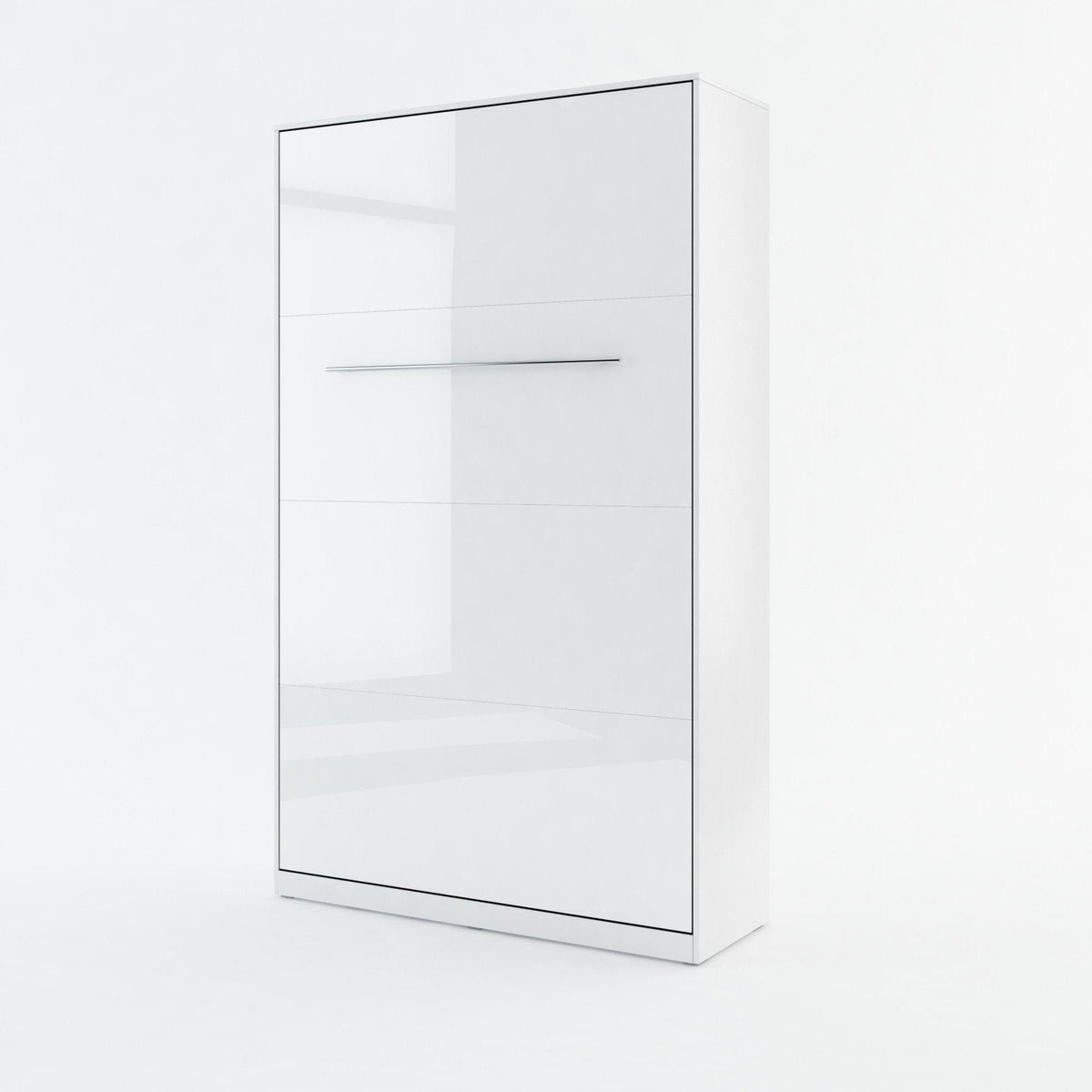

Small double vertical wall bed in White Gloss, closed

Small Double Vertical Wall Bed 120 × 200cm – Lockable, Spring-Assisted Lift

A proper bed at night. Your room back by day.

£925.00

Save

In stock · Estimated two-person delivery by 22 Oct · Free delivery

Colour: Grey Matt

Without mattress

With Foam Bonnell mattress

All colours are decorative finishes on the same laminated furniture board.

£925.00

Save

In stock · Estimated two-person delivery by 22 Oct · Free delivery

Free delivery
14-day returns
Secure checkout

Free delivery
14-day returns
Secure checkout

The details that make the difference

Needs 133cm of wall width
Stretch out: 120×200cm
Open with spring-lift assistance

Questions before you order?

Check room size, access, mattress or delivery with our team before you buy.

WhatsApp us

Dimensions & fit

Overall width: 133cm
Overall height: 217cm
Closed depth: 46cm
Open depth: 237cm
Mattress: 120 × 200cm, up to 18cm deep

Furniture dimensions shown. Allow extra room for assembly, movement and access. Optional cabinets add width or height.

Materials & finish

Construction: Laminated particleboard (laminated furniture board)
Finishes: Grey Matt, White Matt and White Gloss. These are decorative surface finishes on the same construction.
Care: Wipe with a soft, slightly damp cloth and dry. Avoid abrasive pads, solvents and wood treatments.

Product details

A small double for a box room or study that has to stay useful all day. The 120 × 200cm bed stands up into a cabinet 133cm wide and 46cm deep, rises and lowers on a spring-assisted lift that holds at any angle, and locks shut once it is folded away.

The details that make the difference

133cm cabinet width
120 × 200cm sleeping size
Spring-assisted lift
237cm open depth: measure from the wall and allow room to move around it.
External storage cabinets are optional, not included.
22mm laminated particleboard carcass and a lock for the closed position.

Dimensions and fit

Model: CP-02
Sleeping surface: 120 × 200cm
Bed cabinet closed: W133 × H217 × D46cm
Open depth: 237cm
Frame material: laminated particleboard

Allow additional assembly, operating and walking clearance. Have a tight fit checked before ordering.

Included with this configuration

Wall bed cabinet and folding bed frame
Slatted mattress base
Duvet retaining straps

Mattress only included when selected. Wall-specific fixings, installation and unselected accessories are not included.

Mattress compatibility

Use a 120 × 200cm mattress, maximum 18cm thick. The manufacturer's manual recommends a Bonnell sprung mattress of about 15–17kg for the spring balance. The optional Foam Bonnell mattress is 15cm deep and medium firm: a Bonnell spring unit with 2cm of foam on each side and a removable, washable cover.

Assembly and wall mounting

Assembly is required. Use a professional joiner or competent installer to assess the wall and fit suitable structural fixings. Never fix to plasterboard alone. The mattress and the mechanism must be balanced according to the supplied instructions. Do not operate an unsecured or incomplete bed.

Questions before you order

How much space does this CP-02 need?

The bed cabinet is 133cm wide × 217cm high × 46cm deep when closed, and the open bed reaches 237cm from the wall. These are furniture dimensions, not installation clearances. Leave assembly and access space; ask us to check a tight room or sloping ceiling before ordering.

What is included, and what is optional?

The bed frame, slatted base and duvet straps are included. A mattress is included only when you choose the mattress option. External storage cabinets are optional, not included. Extras selected below have their own prices and appear with the bed in your cart.

Is the lift gas-assisted or spring-assisted?

Spring-assisted lift with locking system. Correct wall fixing, assembly and mattress weight are essential to the balance. Do not let children operate the mechanism.

Can I use my own mattress?

Use a 120 × 200cm mattress, no thicker than 18cm. The manual recommends a Bonnell sprung mattress of about 15–17kg; weight and construction affect the lift balance. For a firm, extra-firm, foam or double-sided mattress, send us its size, thickness, weight and construction for confirmation. We do not claim that every mattress of the right size will work.

Can pillows and a duvet stay inside?

Duvet straps are included, but closure depends on mattress thickness, bedding bulk and any headboard. There is no blanket promise that a maximum-thickness mattress, pillows and a thick duvet will all fit together. Remove bulky bedding if necessary and never force the bed closed.

Can I keep my skirting board or mount to plasterboard?

The fixings must reach a suitable solid structure, such as brick, concrete or structural timber. Plasterboard alone is not suitable. Have a competent installer assess the wall, floor and skirting gap. Longer screws alone are not a confirmed solution; wall-specific fixings are not supplied.

Which headboard, lighting or cabinets fit?

The compatible extras shown here are matched to CP-02. Options follow the bed finish you select. Each storage cabinet is 45cm wide, so allow that much extra wall for every cabinet you add.

Which photos and instructions should I use?

Use this model’s product gallery and dimension drawing. The included-items list and your selections determine your order. If a fitting differs between photos, ask us to confirm the current production detail.

Will the packages fit through my doorway or up the stairs?

Assembled dimensions are not package dimensions. Send us the selected model and finish, narrowest doorway, stair width and any tight turns. We can check the exact pack list before you order; package sizes and weights can differ by finish.

Where can I check delivery, returns and warranty?

Read the delivery and returns information on this page and our returns policy before assembly. For model-specific manufacturer warranty terms or an access question, contact us before ordering. Ask us for the written warranty terms for your chosen model.

What is this wall bed made from?

The cabinet and panels are laminated particleboard. The colour you choose changes the surface finish, not the material underneath. The lifting mechanism and slatted base are separate components; see Product details.

Are the colour options different materials?

No. Grey Matt, White Matt and White Gloss are colour and finish options on the same laminated particleboard construction.

What does laminated particleboard mean?

Particleboard is an engineered furniture board made from wood particles bonded under pressure. Laminated means a decorative surface layer is bonded to it at the factory, giving the colour or wood effect you see. It is widely used for fitted and modular furniture such as wardrobes and kitchen units.

Can I sand, stain, paint or oil it, for example with Osmo?

We don't recommend it. The surface is a factory-applied decorative layer, not exposed natural timber. Sanding can cut through it, and penetrating oils such as Osmo are made for suitable natural wood, so they generally don't suit laminate. We have no manufacturer guidance approving any refinishing product. If you need a particular look, contact us before ordering and we'll help you pick the closest finish.

How do I clean it?

Wipe with a soft, slightly damp cloth and dry. Avoid abrasive pads, solvents and wood treatments.
