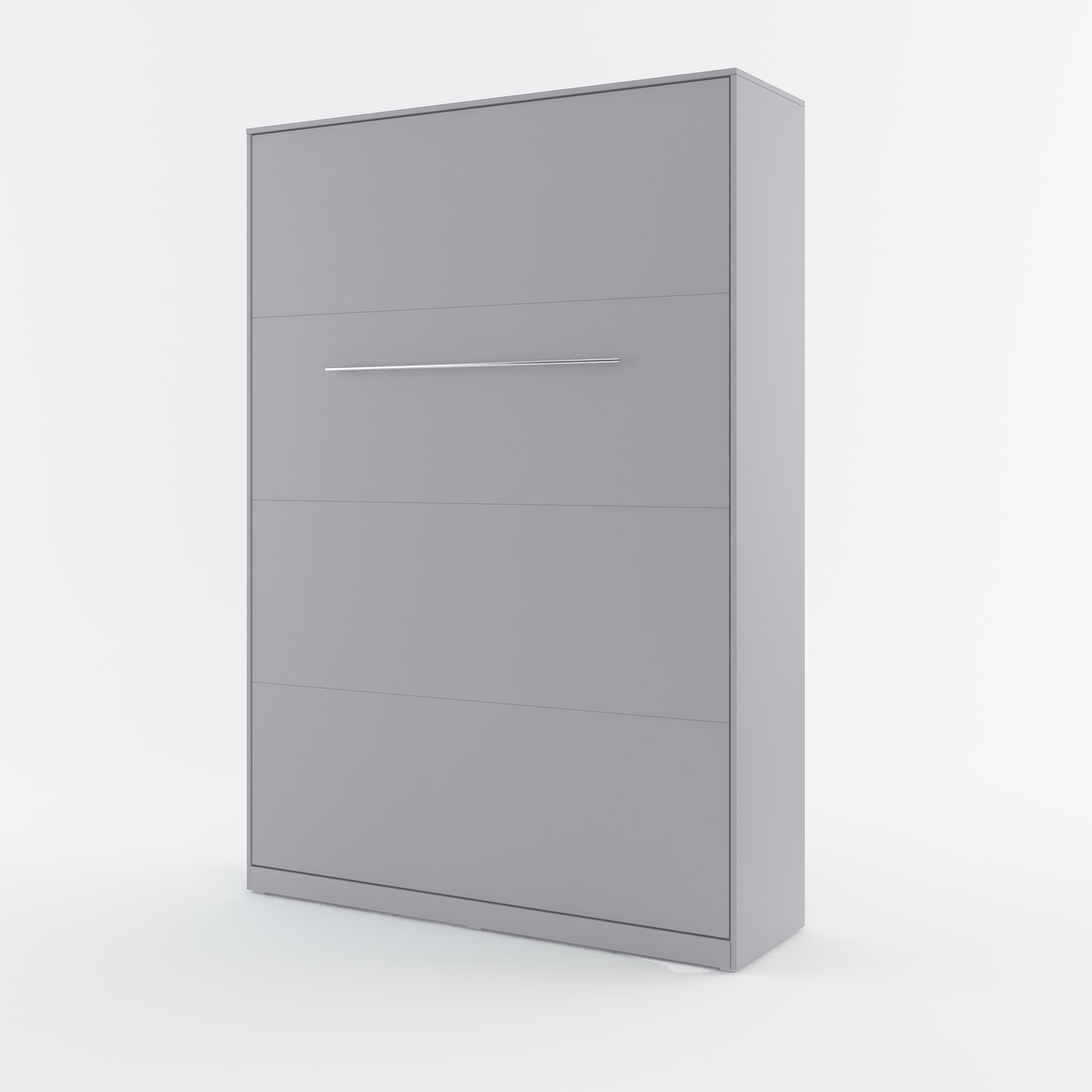

Double (140cm) Vertical Wall Bed (Spring Lift) Grey Matt

CP-01 140 × 200cm Vertical Wall Bed

4.8 142 reviews
Regular price £960.00
Sale price £960.00 Regular price
Unit price
Save
In stock · Estimated two-person delivery by 21 Sep · Free delivery
Colour: Grey Matt
Grey Matt

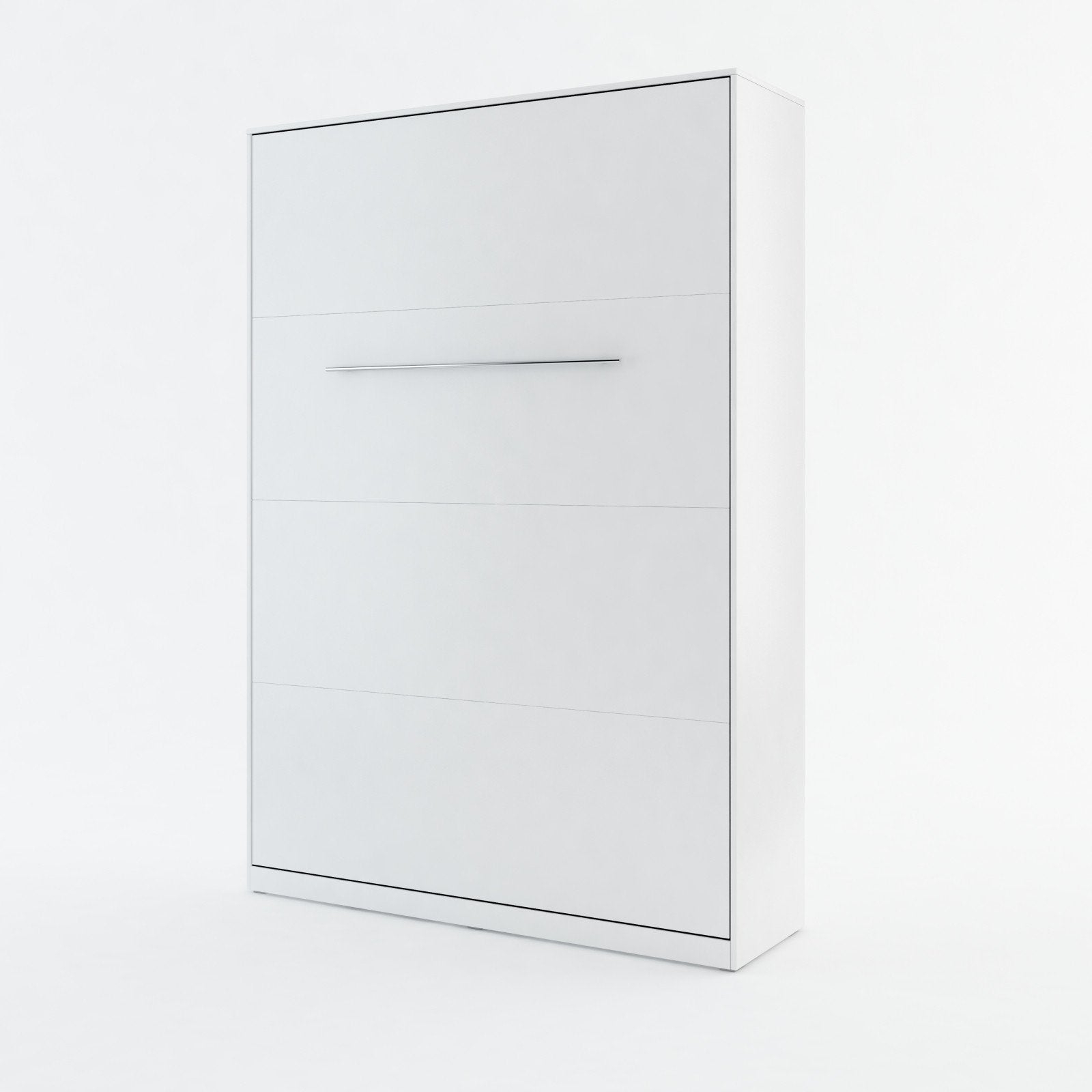

White Matt

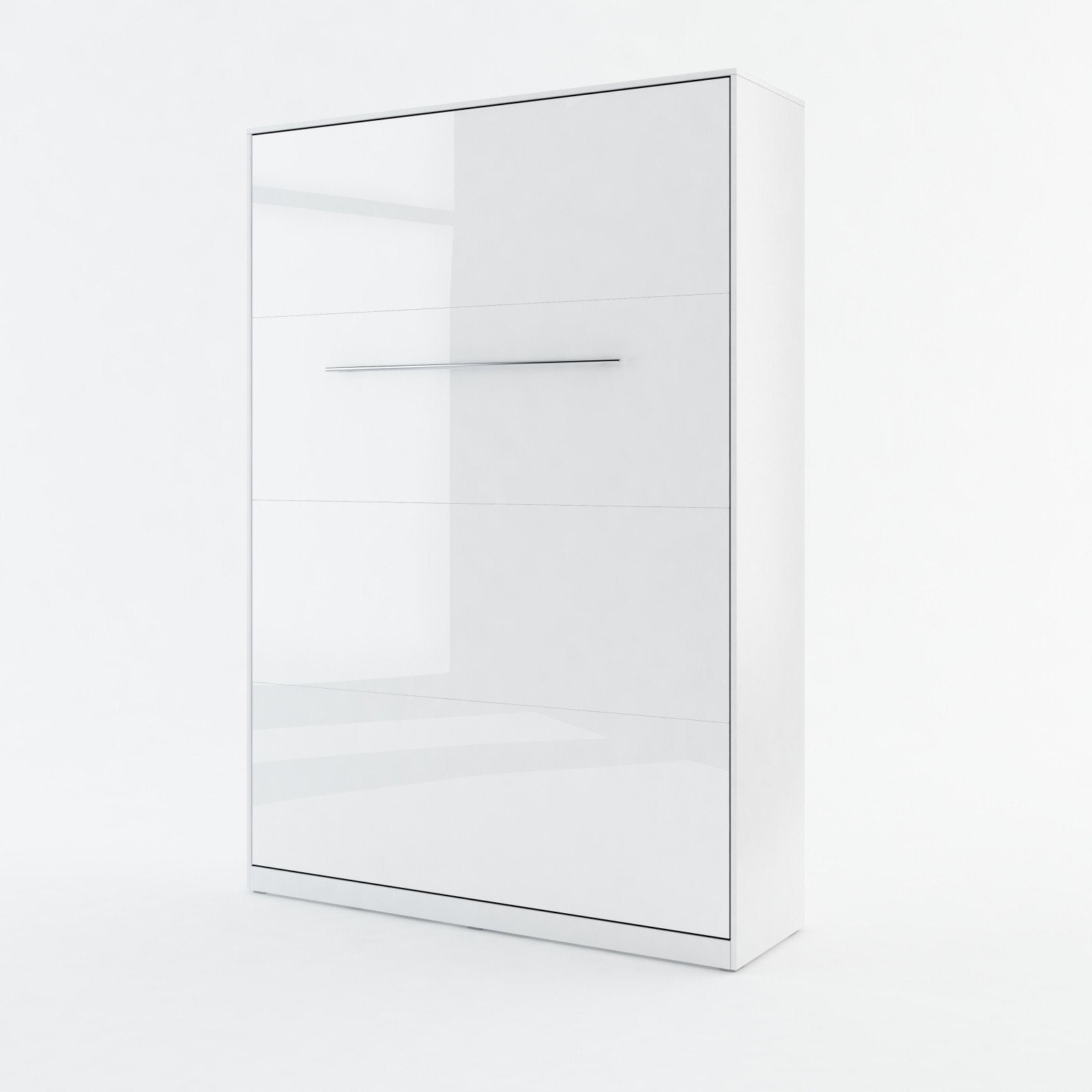

White Gloss

Secure checkout SSL encrypted

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Klarna
  • Bank transfer

The details that make the difference

  • 155cm cabinet width
  • 140 × 200cm sleeping size
  • Spring-assisted lift

Ask a Question

* Required fields

 Size guide
Dimensions, contents and assembly ↓
Double (140cm) Vertical Wall Bed (Spring Lift) Grey Matt
CP-01 140 × 200cm Vertical Wall Bed

CP-01

Dimensions, contents and assembly

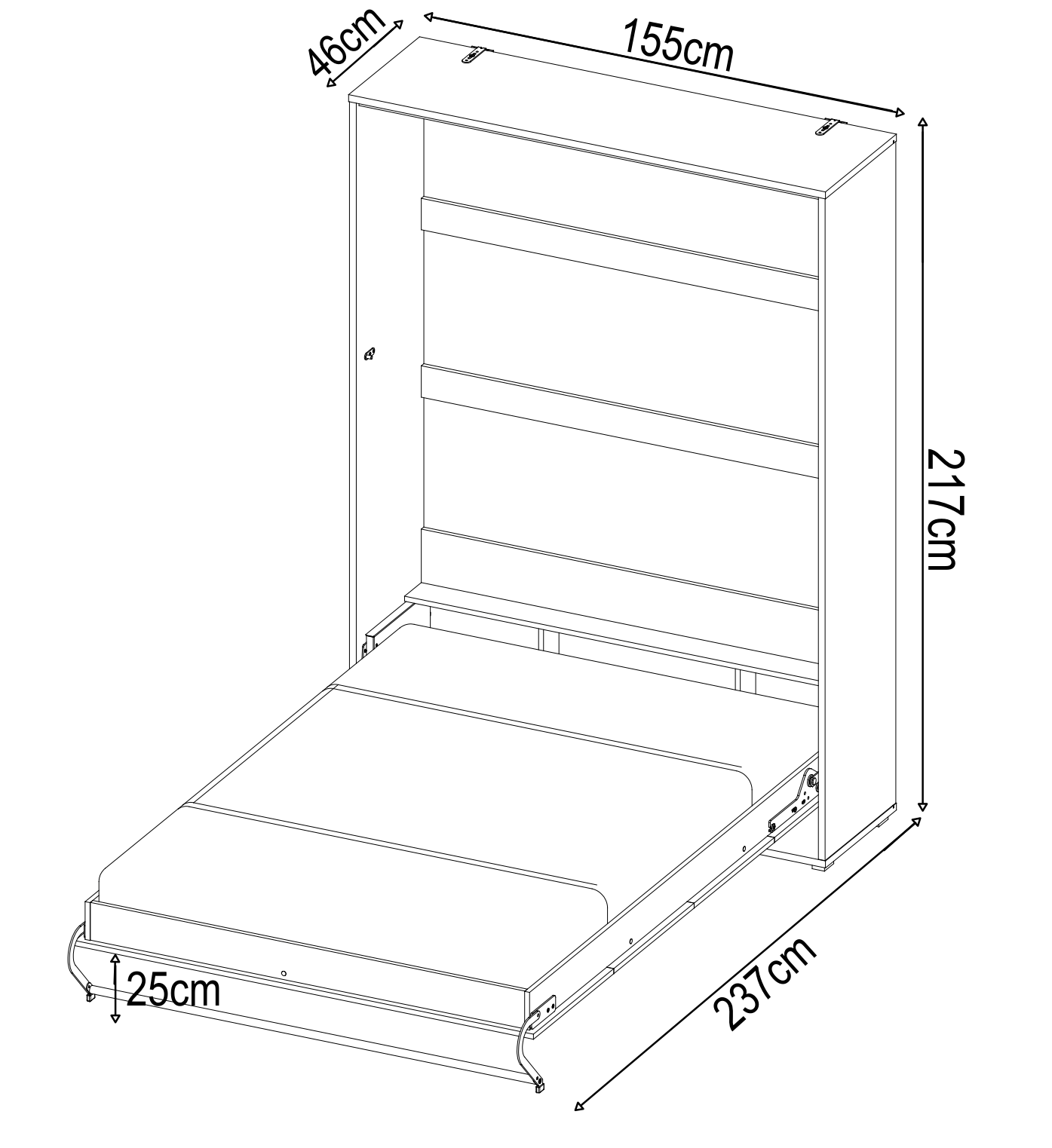

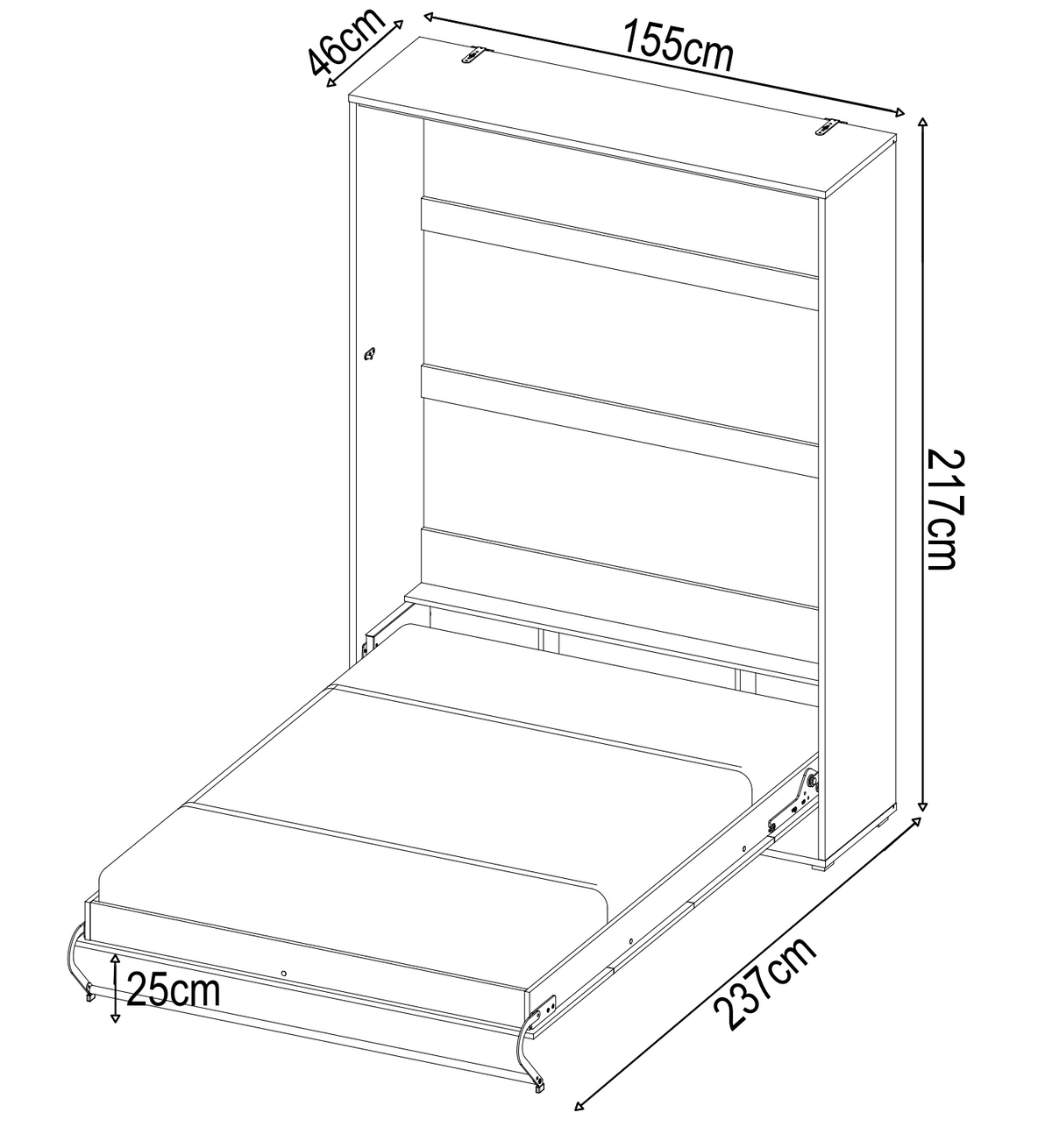

Dimensions & fit

Overall width
155cm
Overall height
217cm
Closed depth
46cm
Open depth
237cm

Furniture dimensions shown. Allow extra room for assembly, movement and access. Optional cabinets add width or height.

Product details

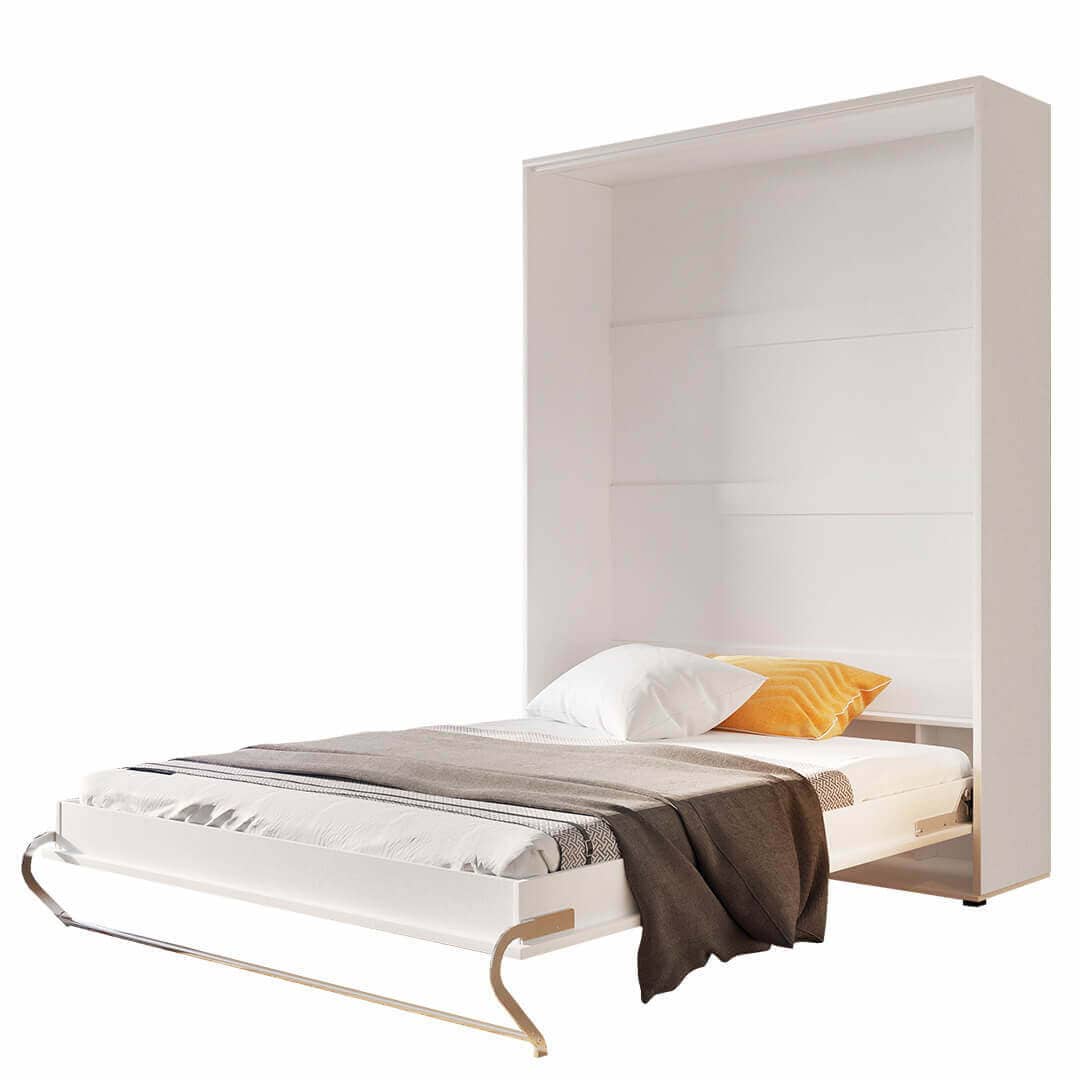

Turn the room back into usable daytime space with the CP-01. Its 140 × 200cm sleeping surface folds vertically into a 46cm-deep cabinet. External storage cabinets are optional, not included.

The details that make the difference

  • 155cm cabinet width
  • 140 × 200cm sleeping size
  • Spring-assisted lift
  • 237cm open depth: measure from the wall and allow room to move around it.
  • External storage cabinets are optional, not included.
  • 22mm laminated-board carcass and a lock for the closed position.

Dimensions and fit

  • Sleeping surface: 140 × 200cm
  • Bed cabinet closed: W155 × H217 × D46cm
  • Open depth: 237cm

Allow additional assembly, operating and walking clearance. Have a tight fit checked before ordering.

Included with this configuration

  • Wall bed cabinet and folding bed frame
  • Slatted mattress base
  • Duvet retaining straps

Mattress only included when selected. Wall-specific fixings, installation and unselected accessories are not included.

Mattress compatibility

Use a 140 × 200cm mattress, maximum 18cm thick. Manufacturer manuals specify a sprung/Bonnell mattress, but recommended weights differ between revisions. Confirm the weight for the version supplied before buying your own.

Assembly and wall mounting

Assembly is required. Use a professional joiner or competent installer to assess the wall and fit suitable structural fixings. Never fix to plasterboard alone. The mattress and the mechanism must be balanced according to the supplied instructions. Do not operate an unsecured or incomplete bed.

Questions before you order

How much space does this CP-01 need?
The complete configuration is 155cm wide × 217cm high × 46cm deep when closed. Open depth is 237cm. These are furniture dimensions, not installation clearances. Leave assembly and access space; ask us to check a tight room or sloping ceiling before ordering. The published open depth does not establish the full movement envelope.
What is included, and what is optional?
External storage cabinets are optional, not included. The bed frame, slatted base and duvet straps are included. A mattress is included only when you choose the mattress option. Extras selected below have their own prices and appear with the bed in your cart.
Is the lift gas-assisted or spring-assisted?
Spring-assisted lift with locking system. Correct wall fixing, assembly and mattress weight are essential to the balance. Do not let children operate the mechanism.
Can I use my own mattress?
Use a 140 × 200cm mattress, maximum 18cm thick. Manufacturer manuals specify a sprung/Bonnell mattress, but recommended weights differ between revisions. Confirm the weight for the version supplied before buying your own. For a firm, extra-firm, foam or double-sided mattress, send us its size, thickness, weight and construction for confirmation. We do not claim that every mattress of the right size will work.
Can pillows and a duvet stay inside?
Duvet straps are included, but closure depends on mattress thickness, bedding bulk and any headboard. There is no blanket promise that a maximum-thickness mattress, pillows and a thick duvet will all fit together. Remove bulky bedding if necessary and never force the bed closed.
Can I keep my skirting board or mount to plasterboard?
The fixings must reach a suitable solid structure, such as brick, concrete or structural timber. Plasterboard alone is not suitable. Have a competent installer assess the wall, floor and skirting gap. Longer screws alone are not a confirmed solution; wall-specific fixings are not supplied.
Which headboard, lighting or cabinets fit?
The compatible extras shown here are matched to CP-01. Options follow the bed finish you select. The CP-12 headboard includes a shelf, so it cannot be selected together with the separate CP-13 shelf. A headboard does not remove the need to check mattress and bedding clearance.
Which photos and instructions should I use?

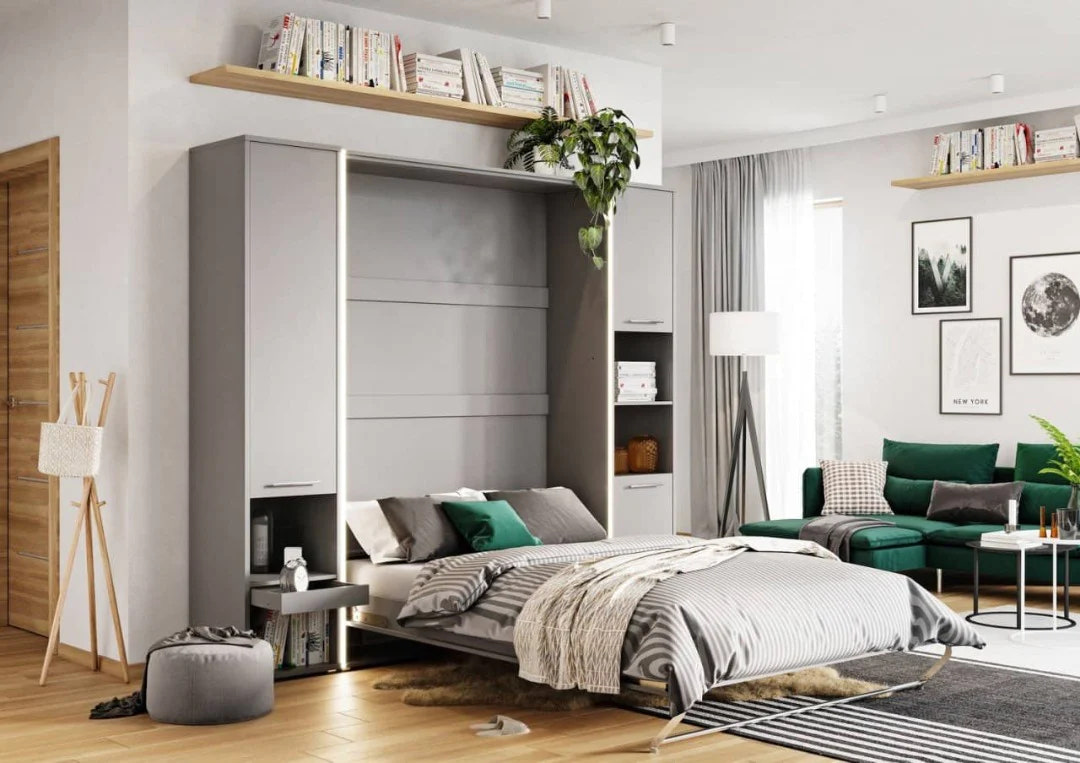

Use this model’s product gallery and dimension drawing. Styled photos may show optional accessories; the included-items list and your selections determine your order. If a foot, support rail or fitting differs between photos, ask us to confirm the current production detail rather than relying on a room illustration.
Will the packages fit through my doorway or up the stairs?
Assembled dimensions are not package dimensions. Send us the selected model and finish, narrowest doorway, stair width and any tight turns. We can check the exact pack list before you order; package sizes and weights can differ by finish.
Where can I check delivery, returns and warranty?
Read the delivery and returns information on this page and our returns policy before assembly. For model-specific manufacturer warranty terms or an access question, contact us before ordering. Ask us for the written warranty terms for your chosen model.

Delivery & Returns
Delivery
  • Order status: In stock
  • Delivery service: Two-person furniture delivery
  • Delivery charge: Included
  • Delivery time: Estimated by 21 Sep
  • Arrangement: We’ll contact you to arrange a suitable delivery date
Returns
  • Return window: Notify us within 14 days after delivery; then 14 days to send back
  • Condition: Inspect as in a shop; statutory hygiene exceptions apply — see our refund policy
  • Return postage: Paid by you (free on faulty items)
  • Faulty items: Full refund or replacement
  • Restocking fees: None
  • Refund processing: Refunds are issued to your original payment method within 10 calendar days after we receive the returned goods or evidence that you sent them back, whichever is earlier. Your payment provider may take additional time to display the credit.
