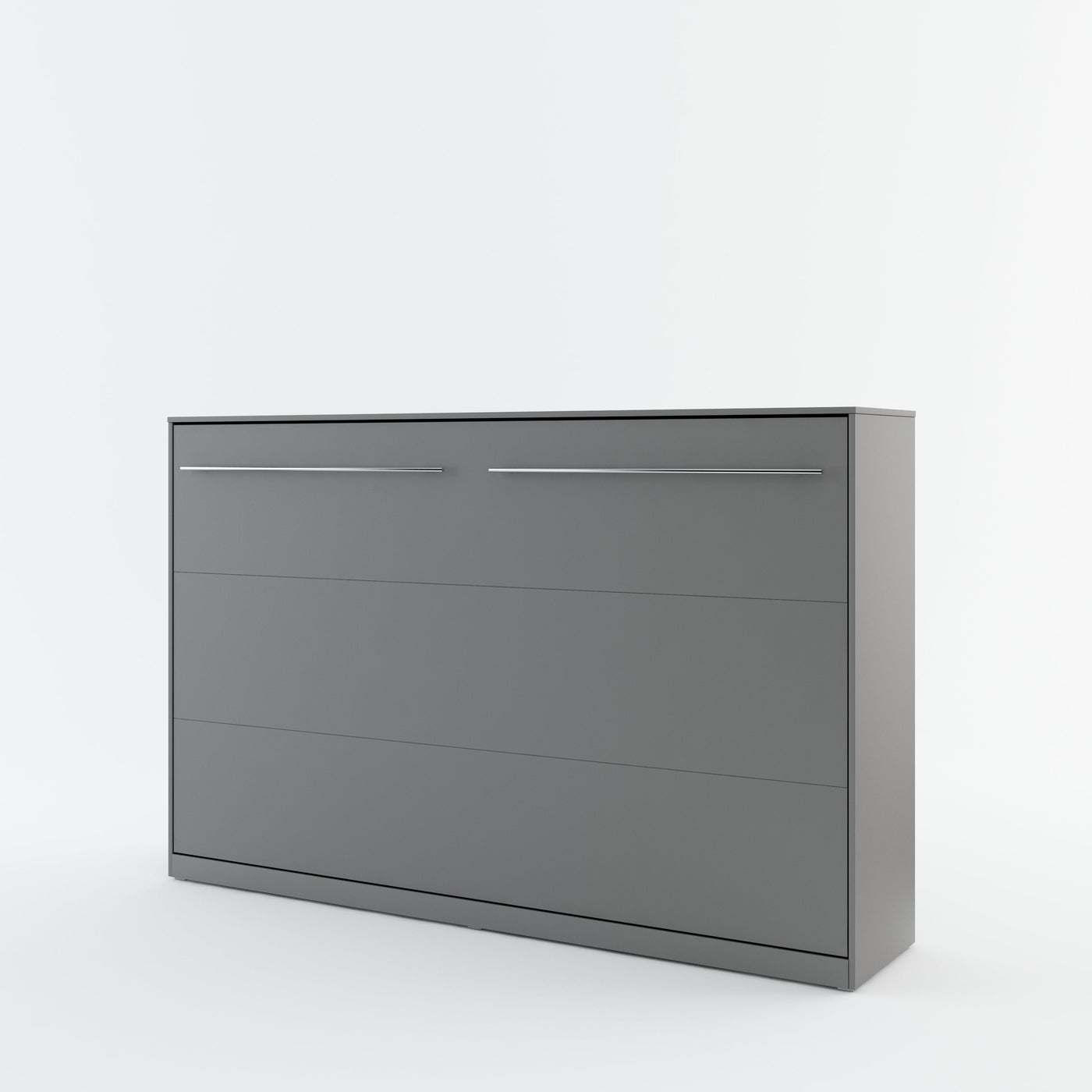

Small Double (120cm) Horizontal Wall Bed (Spring Lift) Grey Matt

CP-05 120 × 200cm Horizontal Wall Bed

4.8 142 reviews
Regular price £1,080.00
Sale price £1,080.00 Regular price
Unit price
Save
Made to order · ready in approx. 4 weeks, then delivery within 10 calendar days · Free delivery
Colour: Grey Matt
Grey Matt

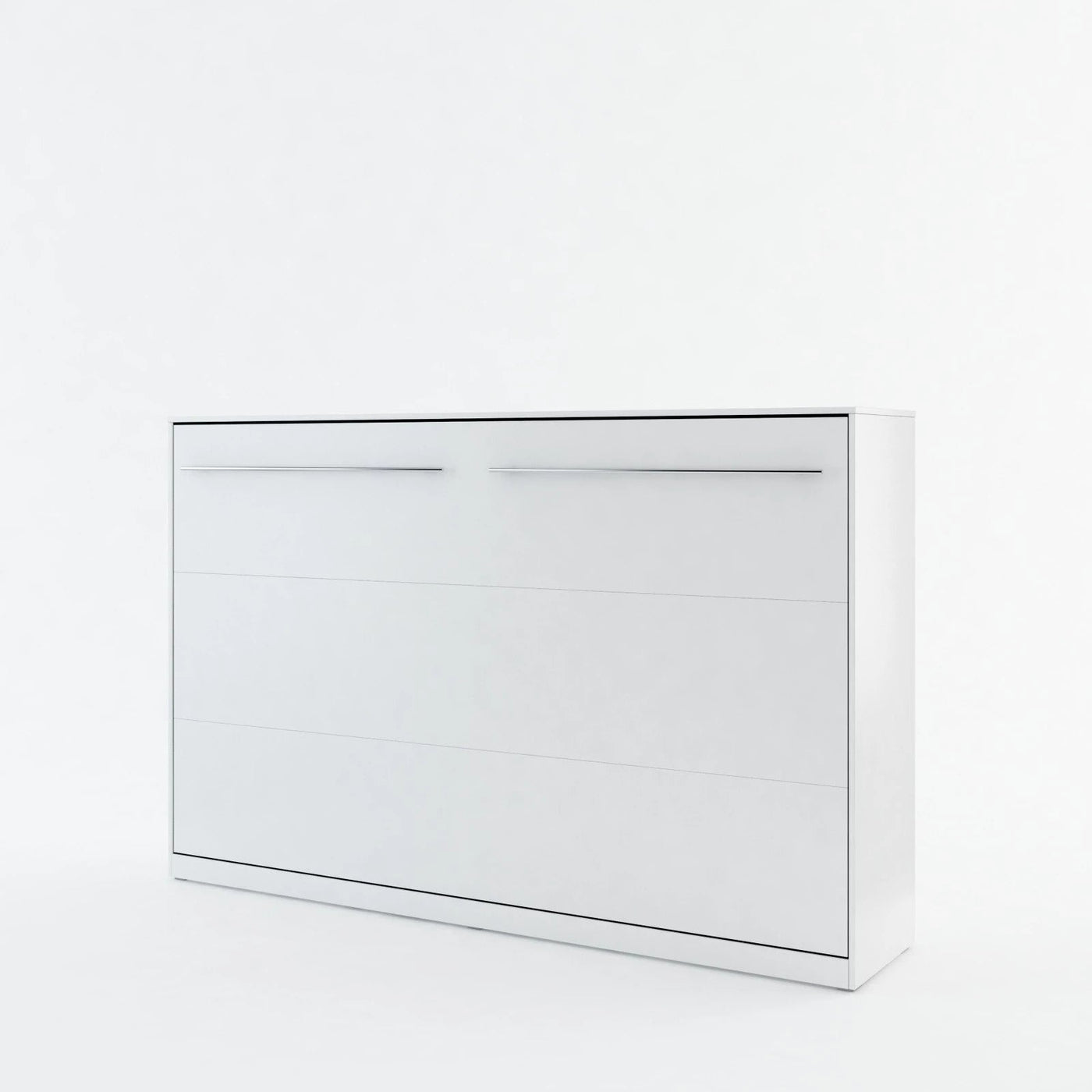

White Matt

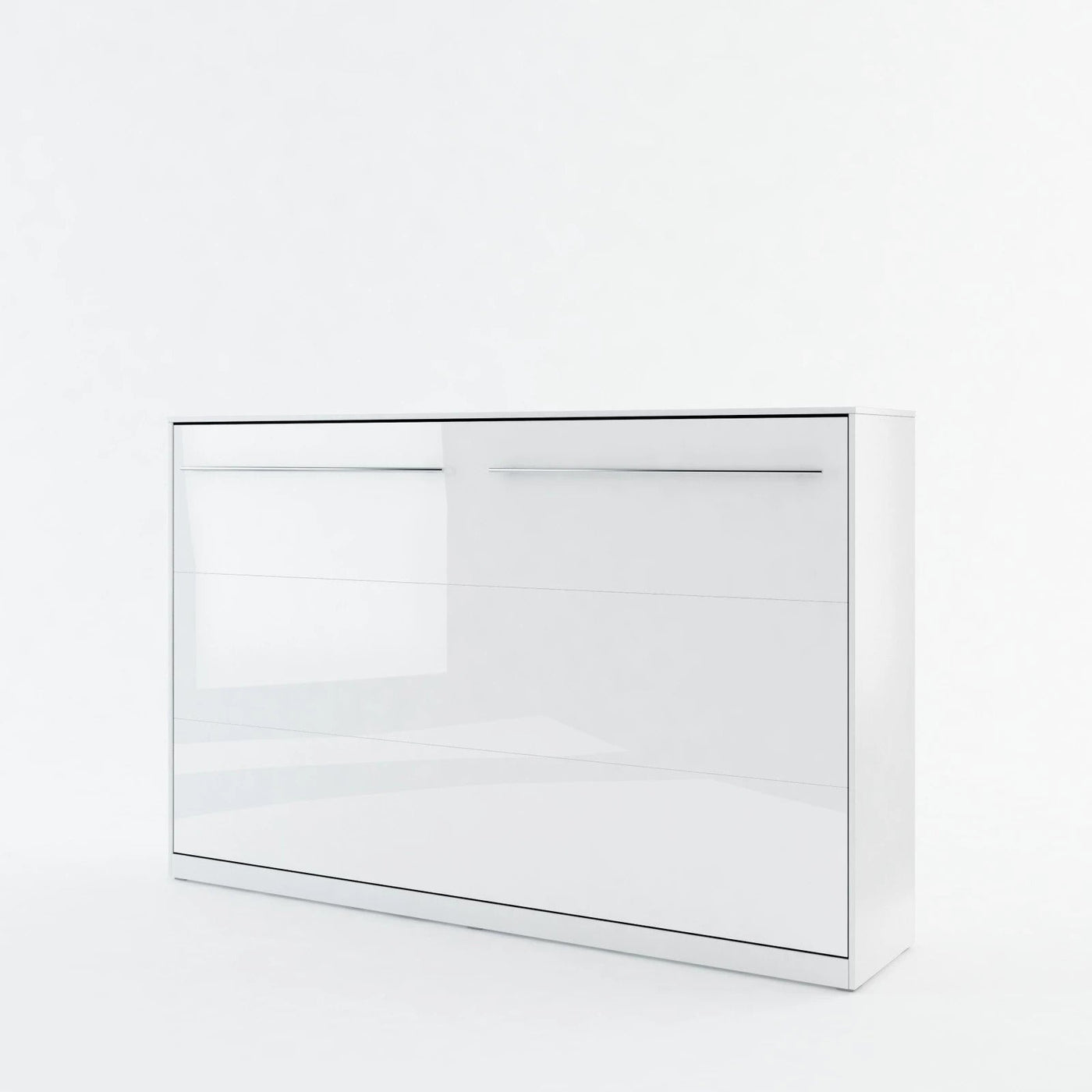

White Gloss

Secure checkout SSL encrypted

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Klarna
  • Bank transfer

The details that make the difference

  • 139cm cabinet height
  • 120 × 200cm sleeping size
  • Spring-assisted lift

Ask a Question

* Required fields

 Size guide
Dimensions, contents and assembly ↓
Small Double (120cm) Horizontal Wall Bed (Spring Lift)
CP-05 120 × 200cm Horizontal Wall Bed

CP-05

Dimensions, contents and assembly

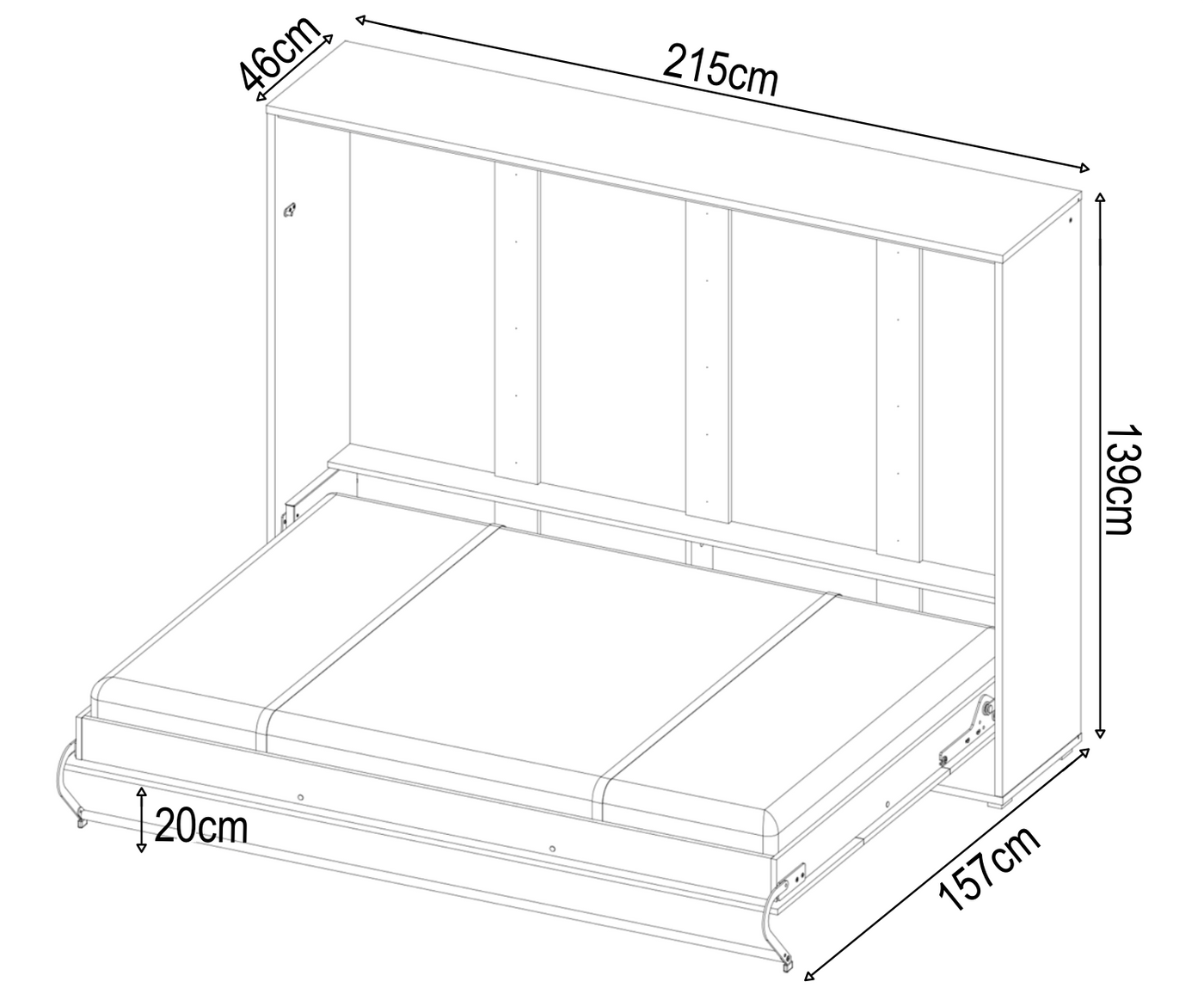

Dimensions & fit

Overall width
215cm
Overall height
139cm
Closed depth
46cm
Open depth
157cm

Furniture dimensions shown. Allow extra room for assembly, movement and access. Optional cabinets add width or height.

Product details

Turn the room back into usable daytime space with the CP-05. Its 120 × 200cm sleeping surface folds sideways into a 46cm-deep cabinet. The 139cm bed cabinet sits lower against the wall than a vertical design. External storage cabinets are optional, not included.

The details that make the difference

  • 139cm cabinet height
  • 120 × 200cm sleeping size
  • Spring-assisted lift
  • 157cm open depth: measure from the wall and allow room to move around it.
  • External storage cabinets are optional, not included.
  • 22mm laminated-board carcass and a lock for the closed position.

Dimensions and fit

  • Sleeping surface: 120 × 200cm
  • Bed cabinet closed: W215 × H139 × D46cm
  • Open depth: 157cm

Allow additional assembly, operating and walking clearance. Have a tight fit checked before ordering.

Included with this configuration

  • Wall bed cabinet and folding bed frame
  • Slatted mattress base
  • Duvet retaining straps

Mattress only included when selected. Wall-specific fixings, installation and unselected accessories are not included.

Mattress compatibility

Use a 120 × 200cm mattress, no thicker than 18cm. Mattress weight and construction also affect the lift balance; check the assembly manual before buying your own.

Assembly and wall mounting

Assembly is required. Use a professional joiner or competent installer to assess the wall and fit suitable structural fixings. Never fix to plasterboard alone. The mattress and the mechanism must be balanced according to the supplied instructions. Do not operate an unsecured or incomplete bed.

Questions before you order

How much space does this CP-05 need?
The complete configuration is 215cm wide × 139cm high × 46cm deep when closed. Open depth is 157cm. These are furniture dimensions, not installation clearances. Leave assembly and access space; ask us to check a tight room or sloping ceiling before ordering. The published open depth does not establish the full movement envelope.
What is included, and what is optional?
External storage cabinets are optional, not included. The bed frame, slatted base and duvet straps are included. A mattress is included only when you choose the mattress option. Extras selected below have their own prices and appear with the bed in your cart.
Is the lift gas-assisted or spring-assisted?
Spring-assisted lift with locking system. Correct wall fixing, assembly and mattress weight are essential to the balance. Do not let children operate the mechanism.
Can I use my own mattress?
Use a 120 × 200cm mattress, no thicker than 18cm. Mattress weight and construction also affect the lift balance; check the assembly manual before buying your own. For a firm, extra-firm, foam or double-sided mattress, send us its size, thickness, weight and construction for confirmation. We do not claim that every mattress of the right size will work.
Can pillows and a duvet stay inside?
Duvet straps are included, but closure depends on mattress thickness, bedding bulk and any headboard. There is no blanket promise that a maximum-thickness mattress, pillows and a thick duvet will all fit together. Remove bulky bedding if necessary and never force the bed closed.
Can I keep my skirting board or mount to plasterboard?
The fixings must reach a suitable solid structure, such as brick, concrete or structural timber. Plasterboard alone is not suitable. Have a competent installer assess the wall, floor and skirting gap. Longer screws alone are not a confirmed solution; wall-specific fixings are not supplied.
Which headboard, lighting or cabinets fit?
The compatible extras shown here are matched to CP-05. Options follow the bed finish you select. A headboard does not remove the need to check mattress and bedding clearance.
Which photos and instructions should I use?
Use this model’s product gallery and dimension drawing. Styled photos may show optional accessories; the included-items list and your selections determine your order. If a foot, support rail or fitting differs between photos, ask us to confirm the current production detail rather than relying on a room illustration.
Will the packages fit through my doorway or up the stairs?
Assembled dimensions are not package dimensions. Send us the selected model and finish, narrowest doorway, stair width and any tight turns. We can check the exact pack list before you order; package sizes and weights can differ by finish.
Where can I check delivery, returns and warranty?
Read the delivery and returns information on this page and our returns policy before assembly. For model-specific manufacturer warranty terms or an access question, contact us before ordering. Ask us for the written warranty terms for your chosen model.

Delivery & Returns
Delivery
  • Order status: Available to order
  • Delivery service: Two-person furniture delivery
  • Delivery charge: Included
  • Delivery time: Ready in approx. 4 weeks, then delivery within 10 calendar days
  • Arrangement: We’ll contact you to arrange a suitable delivery date
Returns
  • Return window: Notify us within 14 days after delivery; then 14 days to send back
  • Condition: Inspect as in a shop; statutory hygiene exceptions apply — see our refund policy
  • Return postage: Paid by you (free on faulty items)
  • Faulty items: Full refund or replacement
  • Restocking fees: None
  • Refund processing: Refunds are issued to your original payment method within 10 calendar days after we receive the returned goods or evidence that you sent them back, whichever is earlier. Your payment provider may take additional time to display the credit.
